Product Name :
Room Side Replaceable HEPA Filter module Unit－flush mounted ceiling type
Description :
By coordinating with the use of ceiling system & hangers, flush mounted ceiling type Room Side Replaceable HEPA Filter module Unit can connect to air hose directly. And it is equipped with an anodized main body, filter protection face guard. In addition, the design of the internal air plenum is to have a gasket or U channel with Gel sealant inside of it to work as the sealing material between HEPA filter and module main body. So that, there is no any tools needed for HEPA filter replacement and this can protect HEPA filter from being polluted repeatedly. And it is equipped with 4 pieces of hanger so as to fix the module. Moreover, as for its small size, light weight, easy assembling, and saving the time needed for its installation, it can be used for clean room or the other critical clean area which its cleanliness level is between class 1 and class 100,000. Customized sizes and specifications are available to meet customer's requirements.
Features :
- Efficiency：PAO 99.99%、99.995% at 0.3µm
- Std.：EN1822，Class H13 / H14

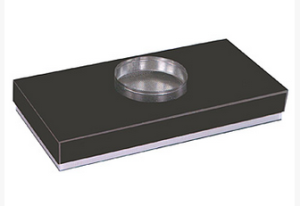

Product name : Disposable Standard Capacity HEPA Filter terminal Unit
Description :
By coordinating with the use of ceiling T-bar system, the disposable HEPA filter module unit can connect to air hose directly. As for its small size, light weight, easy assembling, saving the installation time, it can be used for clean room or the other critical clean area which its cleanliness level is between class 1 and class 100,000. Customized sizes and specifications are available to meet customer's requirements
Features :
- Efficiency：PAO 99.99%、99.995% at 0.3µm
- Std.：EN1822，Class H13 / H14
Product Name :
Room Side Replaceable HEPA Filter module Unit－T-Bar installation type
Description :
By coordinating with the use of ceiling T-bar system, T-Bar installation type Room Side Replaceable HEPA Filter module Unit can connect to air hose directly. And it is equipped with an anodized main body, filter protection face guard. In addition, the design of the internal air plenum is to have a gasket or U channel with Gel sealant inside of it to work as the sealing material between HEPA filter and module main body. So that, there is no any tools needed for HEPA filter replacement and this can protect HEPA filter from being polluted repeatedly. Moreover, as for its small size, light weight, easy assembling, and saving the time needed for its installation, it can be used for clean room or the other critical clean area which its cleanliness level is between class 1 and class 100,000. Customized sizes and specifications are available to meet customer's requirements
Features :
- Efficiency：PAO 99.99%、99.995% at 0.3µm
- Std.：EN1822，Class H13 / H14
