Product name
Application
Type
Frame
Filter media
Gasket
EN 779 class
Average arrestance
EUROVENT 4/5 class
Final pressure drop
Maximum air flow rate
Max. operating temperature
Max. relative humidity

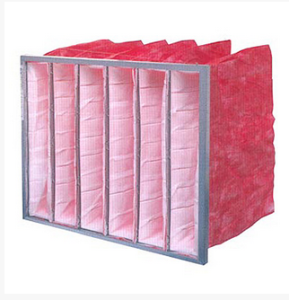

Bag filter
Filtration of fine particles in air handling units and air ventilation system
multi pocket filter/ rigid pocket filters/ deep pleated, high efficiency filter
galvanized frame/ MDF/ polystrene
progressively structured glass fibre
none
F5 , F6, F7, F8
50% to 95% (ASHRAE 52.1.1992)
EU 5, EU6, EU7, EU8
(recommended) 250 Pa – (maximum) 450 Pa
125% of nominal air flow rate
80ᵒC
100% RH
Product name
Application
Type
Frame
Filter media
Gasket
EN 779 class
Average arrestance
EUROVENT 4/5 class
Final pressure drop
Maximum air flow rate
Max. operating temperature
Max. relative humidity

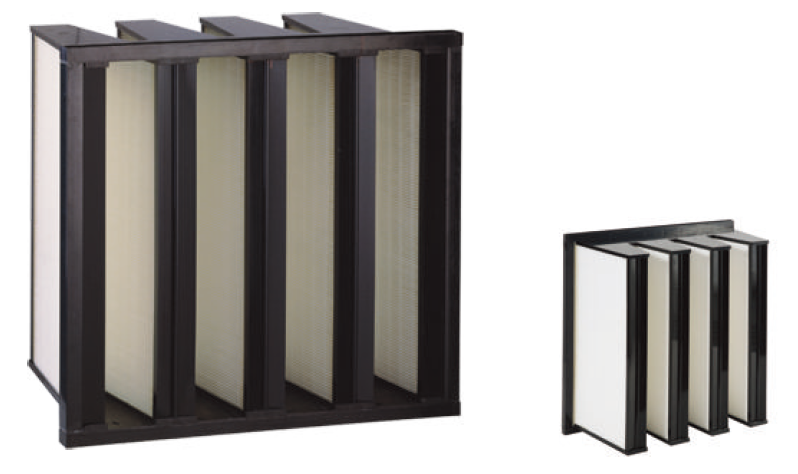

V-bank filter
Filtration of fine particles in air handling units and air ventilation system
rigid pocket filters
polystyrene
micro-fibre glass
none
F8
90% to 95% (ASHRAE 52.1.1992)
EU8
450 Pa
125% of nominal air flow rate
70ᵒC
80% RH
