ULPA filter

Product name
Application
Type
Frame
Filter media
Separator
Sealant
Gasket
EN 1882 class
MPPS average efficiency
MPPS local efficiency
0,12 µm test
Maximum air flow rate
Max. operating temperature
Max. relative humidity

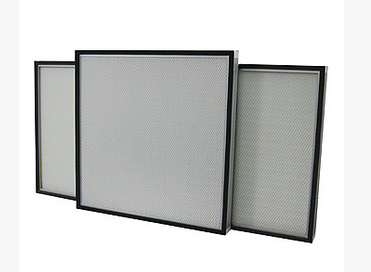

Mini pleat ULPA Filter
Laminar flow air filtration for clean benches, clean rooms etc
minipleat construction ULPA absolute filters
extruded anodized aluminium
micro- fibre glass
thermoplastic cord
polyurethane
one piece polyurethane, semi-circular profile
U15
≥ 99,9995%
≥ 99,9975%
≥ 99,99995%
in order to retain their efficiency characteristics, these filters must not Exceed their rated capacity
60ᵒC
90% RH

minipleat hepa

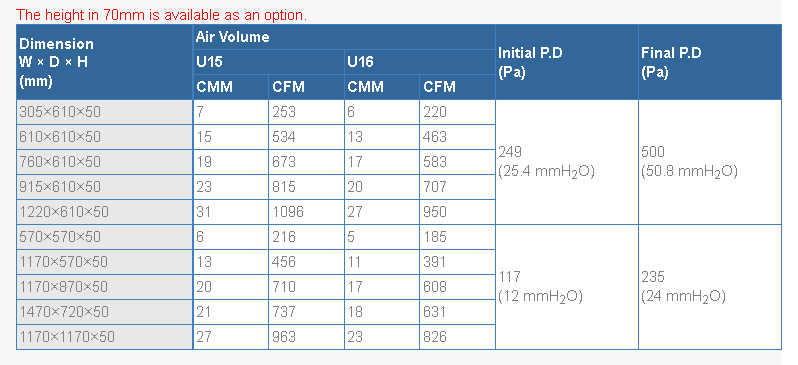

tabelulpa
